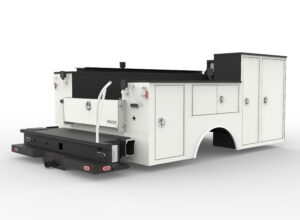

Pro 9 Series Crane Body

  • Crane Capacity Up to 8,000 lbs.
  • Cab-Axle 84"
  • FT.LBS. Rating 50,000 ft.lbs.
  • Bed Length 11 ft
  • Tire Size 19.5"
  • Crosstube 25100
  • Min. GVWR Class 5 - 16,000 lbs.

Get A Quote

  • Dimensions & Build: 134″ L x 94″ H x 62″ W with a robust construction featuring 14 gauge galvanneal as the main body material, ensuring durability and longevity.

  • Body Floor & Understructure: Comprises a 12 gauge hot-rolled treadplate floor and a 10″ high, x formed 10ga Grade 50 channel frame, reinforced with a 12ga Grade 50 underbelly plate for unmatched strength and stability.

  • Finish: Both the interior and exterior are powder-coated in white for a sleek look, complemented by a liner on the cargo area tops and undercoating for extra protection.

  • Accessories: Equipped with high-quality accessories such as 3-point whaletail compression door latches, gas shocks type door holders on all doors, rubber rolled crown type fenderettes, a master door locking system, and LED lighting for visibility and convenience.

  • Safety and Convenience: Features multifunctional LED lights, whale tail latches on all doors, and tie-downs with a 6000 lb capacity to secure loads safely.

  • Enhanced Utility: Includes headache racks with cover lights for added functionality, work lights for night-time operations, and ample storage solutions with adjustable shelving, compartment tops, and more.

  • Customization: The Falcon Pro 9 can be tailored to meet specific needs with various add-ons and customizable features to enhance functionality.

Contact Sales

Product Features

  1. Dimensions:

    • Overall Size: 134″ Long x 94″ High x 62″ Wide
    • Curbside Length: 3403.60 mm (134.00 in)
    • Streetside Length: 3403.60 mm (134.00 in)
    • Height: 2387.60 mm (94.00 in)
    • Width: 2006.60 mm (79.00 in)

  2. Body Materials:

    • Main Body: 14 gauge galvanneal
    • Vertical Compartment Bottoms: 14 gauge
    • Compartment Tops: 12 gauge HR treadplate
    • Door Panels (Outer and Inner): 16 gauge
    • Wheel Panels: 14 gauge galvanneal
    • Front Bulkhead: 14 gauge galvanneal
    • Adjustable Shelving: 14 gauge galvanized
    • Bed Wall Liners: 12 gauge HR treadplate

  3. Body Floor & Understructure:

    • Floor: 12 gauge hot rolled treadplate
    • Frame: 10 inch high x formed 10ga Grade 50 channel
    • Underbelly Plate: 12ga Grade 50

  4. Finish:

    • Interior & Exterior Powder Coating: White
    • Cargo Area Liner & Undercoating

  5. Accessories:

    • Door Latches: 3-point whaletail compression
    • Door Holders: Gas shocks type
    • Fenderettes: Rubber rolled crown type
    • Locking System: Master lock door system
    • LED Lighting: Adhesive LED strip lights in all compartments

  6. Additional Features:

    • Headache Rack: Includes cover light for bed lights
    • Whale Tail Latches: Installed on all doors for secure closure
    • Work Lights: Four strategically placed for optimal illumination
    • Multifunctional LED Lights: Four for enhanced visibility
    • Tie Downs: With a capacity of 6000 lb for secure transportation
    • Oval Reflectors: Amber on the front, Red on the back for safety
    • Master Lock System: For added security
    • Shelving: Central, Front, and Rear shelves with dividers for organization


Specifications

  • Compartment Height 50" - Streetside
    40"/60" - Curbside
  • Compartment Depth 22"
  • Cargo Space Width 50"
  • Streetside-1 Compartment 35"
  • Curbside-1 Compartment 33"
  • Streetside-2/Curbside-2 Compartment SS - 16"
    CS - 22"
  • Streetside-3/Curbside-3 Compartment SS - 48"
    CS - 48"
  • Streetside-4/Curbside-4 Compartment SS - 27"
    CS - 31"
