CE6K

  • MAX. CAPACITY 2,000 lb
  • CRANE RATING 6,000 ft-lb
  • MAX. REACH 3 - 5 ft (Option: 4 - 7 ft)

Get A Quote

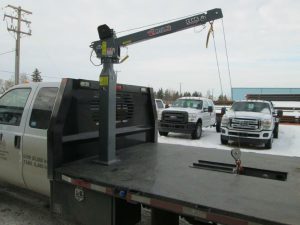

The workhorse of the mast cranes.

The CE6K is a 2,000 lb. crane and is available with your choice of boom sizes and mast heights to meet a variety of lifting needs. This crane features an electric 12V DC winch, manual rotation, manual extension, and manual elevation.

Contact Sales

Product Features

Compact
With a small footprint, the CE6K includes a 10″ x 10″ base plate that will utilize very little cargo space and can be mounted in multiple locations.

12V DC Winch
Features a 900W, 12V Permanent Magnet motor, 3-stage planetary 216:1 with mechanical cone brake and permanent motor dynamic brakes together with aluminum die cast housings with cast iron drum and galvanized aircraft wire rope A7 x 19.



Specifications

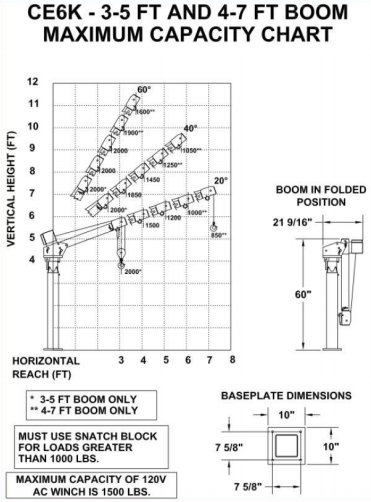

  • Maximum Lift Capacity 2,000 lb (907 kg)
  • Crane Rating 6,000 ft-lb
  • Maximum Reach 3 - 5 ft (4 - 7 ft optional)
  • Power Source Electric Power (12V DC)
  • Wire Rope 60 ft x 3/16" Aircraft Quality
  • Stowed Height 61-1/8"
  • Mounting Space 10" x 10" Mounting Plate
  • Weight (3 - 5 ft) 247 lb (4-7 ft) 265 lb
  • 3-Position boom elevation (20°, 40°, 60°)
  • Load Block with swivel hook and safety latch for maximum capacity loads
  • Battery Cables: Yellow #6 Gauge / Red #6 Gauge / Blue #6 Gauge / Black #6 Gauge / Red #4 Gauge
  • Remote Control Pendant: 17 FT. cord #CE-158
  • Master Disconnect Switch #13451
  • Contactor Box #CE-157

Options & Accessories

  • 150 AMP Circuit Breaker Kit
  • Custom Height Mast – Custom cut-down of mast height to fit different applications
  • Custom Paint
  • Single Jackleg for Utility Body – Extends 0-24″
  • Single Jackleg for Platform Body – Extends 27-45″
  • 900 W, 12V Permanent magnet motor
  • Line Speed (1st Layer): 7.4 mpm / 24.3 fpm @ No load
  • Gear Ratio: 3-stage planetary 216:1
  • Mechanical cone brake and permanent motor dynamic brakes together
  • 60 ft x 3/16″ Aircraft-Quality Wire Rope
  • Remote Control Pendant with 17 ft cord and quick disconnect
  • Provides an answer to the health and safety recommendations for manual lifting.
  • High efficient low amp. draw and sealed permanent magnet motor.
  • Lightweight and compact design is ideal for easy installation.
  • Mechanical spring applied and permanent motor dynamic brakes together for safe, controlled load. Waterproof industrial remote control with 5m lead.
  • Full metal 3 stage planetary gear train for greater pulling force.
  • Submersible sealed contactor handles high amps and allows higher duty cycle.
  • In compliance with standard of ANSI B30.5 for D/d≥18 and rope safety factor ≥3.5.
