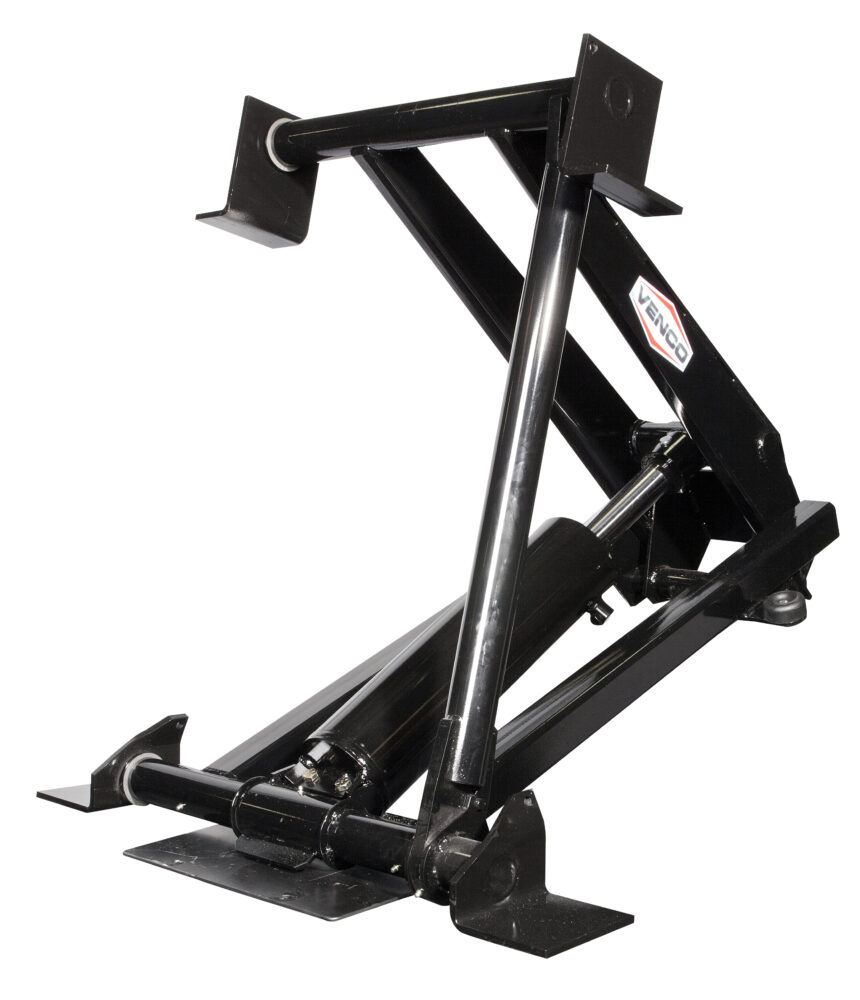

NTEA Class C/20 hoist, featuring 5 " bore x 16" stroke cylinder. Available with or without subframe.

SPECIFICATIONS

For 8′ – 12′ bodies
8 – 17 Ton capacity
Available with 4″ or 5″ cylinder and 16″ stroke
Low mounting height scissors design with narrow drop hinge knuckle
Pre-installed self-locating body prop
Fits 29 1/2″ – 34″ truck frames
7″ Subframe mounting height
Includes 4″ Subframe rail
Conversion Class C
Dump Class 20
High pressure, double-acting cylinder with 5″ bore x 16″ stroke and multi-hard chromed and polished piston rod
Pumps: Electric single-acting, 6 qt. reservoir

  • Electric double-acting, 4 qt. reservoir
  • 4 piston PTO driven, 7/8″ square shaft, 7 qt. reservoir
  • Direct mount gear PTO driven, SAE “A” 2 bolt flange, 5/8″ -9 spline shaft 9 qt. reservoir
Operating pressure: 3000/1000 PSI
Weight:

  • VC516: 385 lbs.
  • VC516 w/SF: 485 lbs.

OPTIONS

**Note***
Venco hoists are designed for and intended to be used on stationary trucks dumping on firm and level ground. Spreading applications and/or shock unloading are strictly prohibited and will void any warranty.
